Sliding Window Protocol is a feature of packet-based data transmission protocols. Sliding window protocols are used where reliable in-order delivery of packets is required, such as in the Data Link Layer as well as in the Transmission Control Protocol (TCP). Which loads class files from both the program and the Java API. Projects for. A Computer Science portal for geeks. It contains well written, well thought and well explained computer science and programming articles, quizzes.

hello guys..
so far i've managed to build a skeleton...now it seems i'm badly in need of some flesh..
overview:
PdfI've written separate sender and reciever portions...the sender portion goes like this:
import java.io.*;
import java.net.*;
public class SendGBN{
//constants
public static byte N = 10; //the N from 'Go-Back-N'
public static byte MAX_SEQ_NUMBER = 20; //The maximum sequence number
public static int PORT = 7609; //the receiver's port
public static int DELAY = 1000; //1 second delay for timeout
//the socket
DatagramSocket socket;
//the ip address of the receiver
InetAddress ipAddress;
//variables from the algorithm
byte base = 1;
byte nextSeqNum = 1;
//needed for receiver thread
volatile boolean done = false;
//number of packets sent, but unacknowledged
int unAckedPackets = 0;
//////////////////////////////
//
// other instance variables
//
//main program
//hostname can be included on the command line
//if not, assume the receiver is listening on this machine
public static void main(String[] args) throws IOException{
InetAddress ipAddress = null;
if(args.length > 0){
//get specified host
ipAddress = InetAddress.getByName(args[0]);
}
else{
//use default local host
ipAddress = InetAddress.getByName('localhost'); //loopback
}
//create a new sender
SendGBN sender = new SendGBN(ipAddress);
//start processing the user's data
sender.processUserData();
}
//constructor
public SendGBN(InetAddress ip) throws IOException{
ipAddress = ip;
socket = new DatagramSocket();
//create receiver thread
ACKListener rcv = new ACKListener();
//start the thread
rcv.start();
/////////////////////////////
//
// other initialization
//
}
//deals with getting the data from the user to send
public void processUserData() throws IOException{
//create input reading mechanism
BufferedReader in =
new BufferedReader(new InputStreamReader(System.in));
System.out.println('Enter some text, to end place a . on a line alone.');
String line = null;
while((line = in.readLine()) != null && !(line.equals('.'))){
//send one packet per character
for(int i = 0; i < line.length(); i++){
char c = line.charAt(i);
//wait until the queue is no longer full
while(unAckedPackets N){
//we can do this because we will be running other threads
//we'll give them a chance to run
Thread.yield();
}
sendPacket©;
}
///////////////////////////////////////////
//
// wait until the queue is no longer full
// send an end of line character
//
}
done = true;
socket.close();
System.out.println('Done!');
}
/*
* The following three methods
* are defined as synchronized so that only one can be active
* at a time from any given thread (main thread, ackListener or timer.
*
*/
public synchronized void sendPacket(char c) throws IOException{
///////////////////////////////////////////
//
// Turn the char c into a packet and send it off.(how!?)
//
// Called from processUserData().
//
//
//
}
public synchronized void receivePacket(DatagramPacket ack){
///////////////////////////////////////////
//
// Process a received packet(how!?)
// Called from the ACKListener thread
//
//
//
}
public synchronized void timeOut(){
///////////////////////////////////////////
//
// Process a message from the timer. (how?)
// Called from the timer.
//
//
//
}
class ACKListener extends Thread{
public void run(){
try{
while(!done){
//listen for packet
DatagramPacket ack = null;
///////////////////////////////////////////
//
// Get an incoming ACK packet
//
//process it
receivePacket(ack);
}
}
catch(IOException ioe){
//Will enter here if the thread is listening for a packet
//when we quit, and that's ok.
}
}
}
}

where I need help is mainly the sendPacket(),recievepacket() and timeOut() methods...
can anybody correct and complete the code?...it would be a great help !..=)

A sliding window protocol is a feature of packet-based data transmissionprotocols. Sliding window protocols are used where reliable in-order delivery of packets is required, such as in the data link layer (OSI layer 2) as well as in the Transmission Control Protocol (TCP).

Conceptually, each portion of the transmission (packets in most data link layers, but bytes in TCP) is assigned a unique consecutive sequence number, and the receiver uses the numbers to place received packets in the correct order, discarding duplicate packets and identifying missing ones. The problem with this is that there is no limit on the size of the sequence number that can be required.

By placing limits on the number of packets that can be transmitted or received at any given time, a sliding window protocol allows an unlimited number of packets to be communicated using fixed-size sequence numbers.The term 'window' on the transmitter side represents the logical boundary of the total number of packets yet to be acknowledged by the receiver. The receiver informs the transmitter in each acknowledgment packet the current maximum receiver buffer size (window boundary). The TCP header uses a 16 bit field to report the receive window size to the sender. Therefore, the largest window that can be used is 216 = 64 kilobytes.

In slow-start mode, the transmitter starts with low packet count and increases the number of packets in each transmission after receiving acknowledgment packets from receiver. For every ack packet received, the window slides by one packet (logically) to transmit one new packet. When the window threshold is reached, the transmitter sends one packet for one ack packet received.

If the window limit is 10 packets then in slow start mode the transmitter may start transmitting one packet followed by two packets (before transmitting two packets, one packet ack has to be received), followed by three packets and so on until 10 packets. But after reaching 10 packets, further transmissions are restricted to one packet transmitted for one ack packet received. In a simulation this appears as if the window is moving by one packet distance for every ack packet received. On the receiver side also the window moves one packet for every packet received.

The sliding window method ensures that traffic congestion on the network is avoided. The application layer will still be offering data for transmission to TCP without worrying about the network traffic congestion issues as the TCP on sender and receiver side implement sliding windows of packet buffer. The window size may vary dynamically depending on network traffic.

For the highest possible throughput, it is important that the transmitter is not forced to stop sending by the sliding window protocol earlier than one round-trip delay time (RTT). The limit on the amount of data that it can send before stopping to wait for an acknowledgment should be larger than the bandwidth-delay product of the communications link. If it is not, the protocol will limit the effective bandwidth of the link.

  • 2Protocol operation
  • 3Examples
    • 3.1The simplest sliding window: stop-and-wait
    • 3.2Go-Back-N
    • 3.3Selective repeat

Motivation[edit]

In any communication protocol based on automatic repeat request for error control, the receiver must acknowledge received packets. If the transmitter does not receive an acknowledgment within a reasonable time, it re-sends the data.

A transmitter that does not hear an acknowledgment cannot know if the receiver actually received the packet; it may be that it was lost or damaged in transmission. If error detection reveals corruption, the packet will be ignored by the receiver and a negative or duplicate acknowledgement will be sent by the receiver. The receiver may also be configured to not send any acknowledgement at all. Similarly, the receiver is usually uncertain about whether its acknowledgements are being received. It may be that an acknowledgment was sent, but was lost or corrupted in the transmission medium. In this case, the receiver must acknowledge the retransmission to prevent the data being continually resent, but must otherwise ignore it.

Protocol operation[edit]

The transmitter and receiver each have a current sequence number nt and nr, respectively. They each also have a window size wt and wr. The window sizes may vary, but in simpler implementations they are fixed. The window size must be greater than zero for any progress to be made.

As typically implemented, nt is the next packet to be transmitted, i.e. the sequence number of the first packet not yet transmitted. Likewise, nr is the first packet not yet received. Both numbers are monotonically increasing with time; they only ever increase.

The receiver may also keep track of the highest sequence number yet received; the variable ns is one more than the sequence number of the highest sequence number received. For simple receivers that only accept packets in order (wr = 1), this is the same as nr, but can be greater if wr > 1. Note the distinction: all packets below nr have been received, no packets above ns have been received, and between nr and ns, some packets have been received.

When the receiver receives a packet, it updates its variables appropriately and transmits an acknowledgment with the new nr. The transmitter keeps track of the highest acknowledgment it has received na. The transmitter knows that all packets up to, but not including na have been received, but is uncertain about packets between na and ns; i.e. nanrns.

The sequence numbers always obey the rule that nanrnsntna + wt. That is:

  • nanr: The highest acknowledgement received by the transmitter cannot be higher than the highest nr acknowledged by the receiver.
  • nrns: The span of fully received packets cannot extend beyond the end of the partially received packets.
  • nsnt: The highest packet received cannot be higher than the highest packet sent.
  • ntna + wt: The highest packet sent is limited by the highest acknowledgement received and the transmit window size.

Transmitter operation[edit]

Whenever the transmitter has data to send, it may transmit up to wt Packets ahead of the latest acknowledgment na. That is, it may transmit packet number nt as long as nt < na+wt.

In the absence of a communication error, the transmitter soon receives an acknowledgment for all the packets it has sent, leaving na equal to nt. If this does not happen after a reasonable delay, the transmitter must retransmit the packets between na and nt.

Techniques for defining 'reasonable delay' can be extremely elaborate, but they only affect efficiency; the basic reliability of the sliding window protocol does not depend on the details.

Receiver operation[edit]

Every time a packet numbered x is received, the receiver checks to see if it falls in the receive window, nrx < nr+wr. (The simplest receivers only have to keep track of one value nr=ns.) If it falls within the window, the receiver accepts it. If it is numbered nr, the receive sequence number is increased by 1, and possibly more if further consecutive packets were previously received and stored. If x > nr, the packet is stored until all preceding packets have been received.[1] If xns, the latter is updated to ns=x+1.

If the packet's number is not within the receive window, the receiver discards it and does not modify nr or ns.

Whether the packet was accepted or not, the receiver transmits an acknowledgment containing the current nr. (The acknowledgment may also include information about additional packets received between nr or ns, but that only helps efficiency.)

Note that there is no point having the receive window wr larger than the transmit window wt, because there is no need to worry about receiving a packet that will never be transmitted; the useful range is 1 ≤ wrwt.

Sequence number range required[edit]

Sequence numbers modulo 4, with wr=1. Initially, nt=nr=0

So far, the protocol has been described as if sequence numbers are of unlimited size, ever-increasing. However, rather than transmitting the full sequence number x in messages, it is possible to transmit only x mod N, for some finite N. (N is usually a power of 2.)

For example, the transmitter will only receive acknowledgments in the range na to nt, inclusive. Since it guarantees that ntnawt, there are at most wt+1 possible sequence numbers that could arrive at any given time. Thus, the transmitter can unambiguously decode the sequence number as long as N > wt.

A stronger constraint is imposed by the receiver. The operation of the protocol depends on the receiver being able to reliably distinguish new packets (which should be accepted and processed) from retransmissions of old packets (which should be discarded, and the last acknowledgment retransmitted). This can be done given knowledge of the transmitter's window size. After receiving a packet numbered x, the receiver knows that x < na+wt, so na > xwt. Thus, packets numbered xwt will never again be retransmitted.

The lowest sequence number we will ever receive in future is nswt

The receiver also knows that the transmitter's na cannot be higher than the highest acknowledgment ever sent, which is nr. So the highest sequence number we could possibly see is nr+wtns+wt.

Thus, there are 2wt different sequence numbers that the receiver can receive at any one time. It might therefore seem that we must have N ≥ 2wt. However, the actual limit is lower.

The additional insight is that the receiver does not need to distinguish between sequence numbers that are too low (less than nr) or that are too high (greater than or equal to ns+wr). In either case, the receiver ignores the packet except to retransmit an acknowledgment. Thus, it is only necessary that Nwt+wr. As it is common to have wr<wt (e.g. see Go-Back-N below), this can permit larger wt within a fixed N.

Examples[edit]

The simplest sliding window: stop-and-wait[edit]

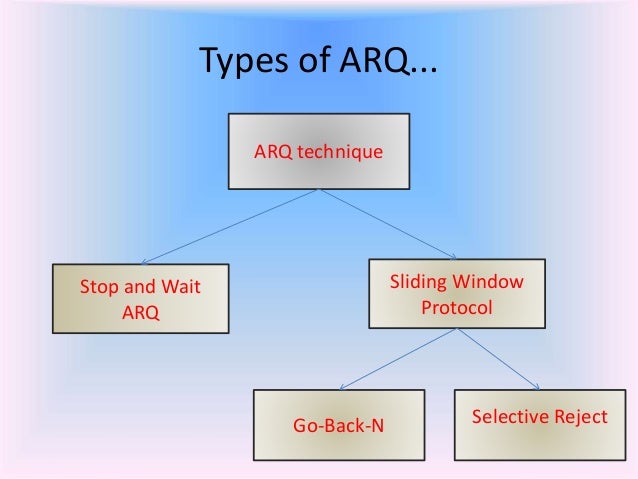

Although commonly distinguished from the sliding-window protocol, the stop-and-wait ARQ protocol is actually the simplest possible implementation of it. The transmit window is 1 packet, and the receive window is 1 packet. Thus, N=1+1=2 possible sequence numbers (conveniently represented by a single bit) are required.

Ambiguity example[edit]

The transmitter alternately sends packets marked 'odd' and 'even'. The acknowledgments likewise say 'odd' and 'even'. Suppose that the transmitter, having sent an odd packet, did not wait for an odd acknowledgment, and instead immediately sent the following even packet. It might then receive an acknowledgment saying 'expecting an odd packet next'. This would leave the transmitter in a quandary: has the receiver received both of the packets, or neither?

Go-Back-N[edit]

Go-Back-N ARQ is the sliding window protocol with wt>1, but a fixed wr=1. The receiver refuses to accept any packet but the next one in sequence. If a packet is lost in transit, following packets are ignored until the missing packet is retransmitted, a minimum loss of one round trip time. For this reason, it is inefficient on links that suffer frequent packet loss.

Ambiguity example[edit]

Protocol

Suppose that we are using a 3-bit sequence number, such as is typical for HDLC. This gives N=23=8. Since wr=1, we must limit wt≤7. This is because, after transmitting 7 packets, there are 8 possible results: Anywhere from 0 to 7 packets could have been received successfully. This is 8 possibilities, and the transmitter needs enough information in the acknowledgment to distinguish them all.

If the transmitter sent 8 packets without waiting for acknowledgment, it could find itself in a quandary similar to the stop-and-wait case: does the acknowledgment mean that all 8 packets were received successfully, or none of them?

Selective repeat[edit]

The most general case of the sliding window protocol is Selective Repeat ARQ. This requires a much more capable receiver, which can accept packets with sequence numbers higher than the current nr and store them until the gap is filled in.

The advantage, however, is that it is not necessary to discard following correct data for one round-trip time before the transmitter can be informed that a retransmission is required. This is therefore preferred for links with low reliability and/or a high bandwidth-delay product.

The window size wr need only be larger than the number of consecutive lost packets that can be tolerated. Thus, small values are popular; wr=2 is common.

Ambiguity example[edit]

The extremely popular HDLC protocol uses a 3-bit sequence number, and has optional provision for selective repeat. However, if selective repeat is to be used, the requirement that nt+nr ≤ 8 must be maintained; if wr is increased to 2, wt must be decreased to 6.

Suppose that wr =2, but an unmodified transmitter is used with wt =7, as is typically used with the go-back-N variant of HDLC. Further suppose that the receiver begins with nr =ns =0.

Now suppose that the receiver sees the following series of packets (all modulo 8):

0 1 2 3 4 5 6 (pause) 0

Because wr =2, the receiver will accept and store the final packet 0 (thinking it is packet 8 in the series), while requesting a retransmission of packet 7. However, it is also possible that the transmitter failed to receive any acknowledgments and has retransmitted packet 0. In this latter case, the receiver would accept the wrong packet as packet 8.

The solution is for the transmitter to limit wt ≤6. With this restriction, the receiver knows that if all acknowledgments were lost, the transmitter would have stopped after packet 5. When it receives packet 6, the receiver can infer that the transmitter received the acknowledgment for packet 0 (the transmitter's na ≥1), and thus the following packet numbered 0 must be packet 8.

Extensions[edit]

There are many ways that the protocol can be extended:

  • The above examples assumed that packets are never reordered in transmission; they may be lost in transit (error detection makes corruption equivalent to loss), but will never appear out of order. The protocol can be extended to support packet reordering, as long as the distance can be bounded; the sequence number modulus N must be expanded by the maximum misordering distance.
  • It is possible to not acknowledge every packet, as long as an acknowledgment is sent eventually if there is a pause. For example, TCP normally acknowledges every second packet.
    • It is common to inform the transmitter immediately if a gap in the packet sequence is detected. HDLC has a special REJ (reject) packet for this.
  • The transmit and receive window sizes may be changed during communication, as long as their sum remains within the limit of N. Normally, they are each assigned maximum values that respect that limit, but the working value at any given time may be less than the maximum. In particular:
    • It is common to reduce the transmit window size to slow down transmission to match the link's speed, avoiding saturation or congestion.
    • One common simplification of selective-repeat is so called SREJ-REJ ARQ. This operates with wr=2 and buffers packets following a gap, but only allows a single lost packet; while waiting for that packet, wr=1 and if a second packet is lost, no more packets are buffered. This gives most of the performance benefit of the full selective-repeat protocol, with a simpler implementation.
